2024 Grand Design Recreational Vehicles Imagine AIM Series M-16BL Specs

Specifications

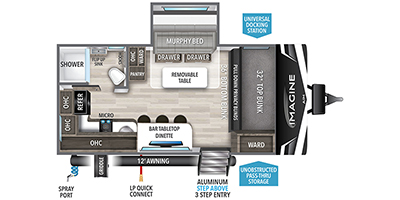

Floor Plan

Type

Travel Trailer

Basic Warranty (Months)

Revision Status

New

Maximum Sleeping Capacity

Number Of Slideouts

Length (ft-in / m)

19' 11' / 6.1

Interior Height (in / mm)

78 / 1981.2

Base Weight (lbs / kg)

3976 / 1803.5

Carrying Capacity (lbs / kg)

N/A

Hitch Weight (lbs / kg)

406 / 184.2

Number Of Axles

Air Conditioning (BTUs)

13500

Heater (BTUs)

20000

Fresh Water Capacity (gal / L)

37 / 140.1

Gray Water Capacity (gal / L)

45 / 170.3

Black Water Capacity (gal / L)

37 / 140.1

Propane Capacity (gal / lbs)

9.4 / 40

Water Heater Tank (gal / L)

N/A

Air Conditioning

Standard

Kitchen Dinette

Pedestal Table

Interior Flooring Type

Vinyl

Master Bedroom

Not Available

Number Of Bathrooms

Shower

Standard

Television

Standard

DVD Player

Not Available

Patio Awning

Standard

Leveling Jack Type

Front Manual / Rear Manual

Power Retractable Entry Steps

Not Available
