2018 Sierra by Forest River M-369SAQB Specs

Specifications

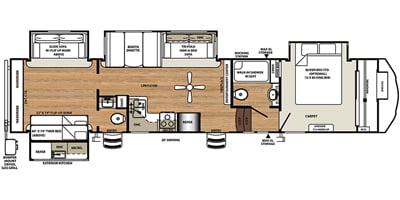

Floor Plan

Type

Fifth Wheel

Basic Warranty (Months)

Revision Status

New

Maximum Sleeping Capacity

Number Of Slideouts

Length (ft-in / m)

41' 2' / 12.5

Interior Height (in / mm)

84 / 2133.6

Base Weight (lbs / kg)

13103 / 5943.5

Carrying Capacity (lbs / kg)

2397 / 1087.3

Hitch Weight (lbs / kg)

2197 / 996.6

Number Of Axles

Air Conditioning (BTUs)

15000

Heater (BTUs)

35000

Fresh Water Capacity (gal / L)

60 / 227.1

Gray Water Capacity (gal / L)

134 / 507.2

Black Water Capacity (gal / L)

104 / 393.7

Propane Capacity (gal / lbs)

14.2 / 60

Water Heater Tank (gal / L)

10 / 37.9

Air Conditioning

Standard

Kitchen Dinette

Bench Seats

Interior Flooring Type

Carpet / Vinyl

Master Bedroom

Standard

Number Of Bathrooms

Shower

Standard

Television

Standard

DVD Player

Standard

Patio Awning

Standard

Leveling Jack Type

Front Power / Rear Manual

Power Retractable Entry Steps

Not Available
